Small capacity fruit and vegetable cleaning machine/vegetable and fruit washing machine/fruit and

  • >=1 Sets
    $135.00
Model Number:
YQ-350
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Chuangyuan
Place of Origin:
Shandong, China
Voltage:
220V/380V, 220/380V
Power(W):
750w
Dimension(L*W*H):
570*430*850 mm
Weight:
45kg
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Free spare parts
Name:
Fruit and vegetable peeling machine
Application:
potatoes, apples
Machine Size:
570*430*850 mm
Gross weight:
45 KG
Power:
750W
Rated frequency:
50HZ
Capacity:
150-220KG/H
Original:
China
Brand:
Chuangyuan
Condition:
New
Type:
Stripper
Supply Ability
Supply Ability:
50 Set/Sets per Week
Packaging & Delivery
Packaging Details
Standard export wooden box packaging
Port
Xingang / Shanghai/ Xingang
Product Description

Potato peeling machine used cast iron sand tray, the wall of stainless steel barrel has sprayed with thick mortar.The outlet is also changed from the early hinge door changed to the up and down for opening , unlike the hinge is easy to be high-speed operation of the potatoes bounce open, more secure.


Potato peeling machine is mainly use for taro, potatoes and other tare and cleaning, apply to hotels, school cafeteria, enterprises and institutions restaurants,food processing plants and snack bar. Adopt the centrifugal rotation and friction peeling technology, peeling clean, small flesh damage and high efficiency, at the same time for washing potatoes, and potato skin and sewage automatically discharged, clean and sanitary. It’s a very ideal potato peeling equipment.

Detailed Images
 Name
Fruit and vegetable peeling machine
Model
YQ-350
Voltage
220V/380
Machine size
570*430*850 mm
Power
750W
Machine
fruit and vegetable peeling machine
Gross weight
45KG
Model
Dimension (mm)
Voltage
Power
 Output  KG/H
Rated frequency
waterproof level
YQ-350
570*430*850mm
220/380V
750W
150-220
50HZ
1P*1
YQ-450
700*500*890 mm
220/380V
1500W
300-500
50HZ
1P*1
Main structure


1)The machine is mainly composed of frame, barrel part, dial plate and water system and other components.

2)The machine made of stainless steel, to ensure long-term work of stainless and harmless

.

3)This product is designed to be easy to put things into the barrel.


4)Peeling clean, save time, save water, save power and safety, there will be no crack and broken the phenomeno


5)It can be peel off taro, potato skin (potato), etc., the size of the product mix can also quickly peeling.

6)The machine can be adjusted, the barrel of the turntable and the export hopper motor cover and so can be loaded and unloaded, transport and maintenance more convenient




Machine operation

 Manual cutting

 A wast of time and  manpower with the low efficiency :

Machine cutting :

All full automated , fast processing time, saves the manpower, the clean health and high efficiency

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Method of application

1)Turn on the power, start the switch, check whether the direction of rotation of the dial is the same as the arrow of the machine,otherwise the three-phase power supply can be re-connected to any two-phase power. Use a hose connected to the inlet and tap water switch , the sewage discharge can be connected according to the situation hose, put the container or directly into the sewer.
2)Before the machine starts, the potatoes from the mouth into the 350 type each 10-15 kg is appropriate, 450 each 20-30 kg is appropriate.
3)Open the water switch, put the water into the cylinder, the appropriate adjustment of heavy volume, the tank cover pressed, start the switch.
4)Machine working for about two minutes, switch off the power and water, depending on the potato peeling, the skin if the potatoes have been off the net, you can open the tank cover door, turn on the power switch, the dial is rotated in the potato, driven from the cartridge door automatic unloading

Machine Quanlity

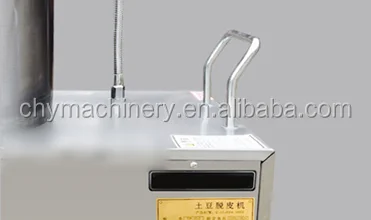

                                     Machine handle

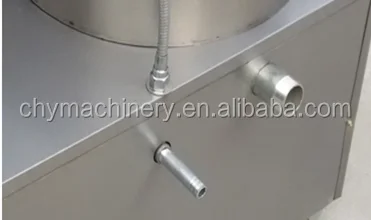

                      Water Intake and sewage outlet.

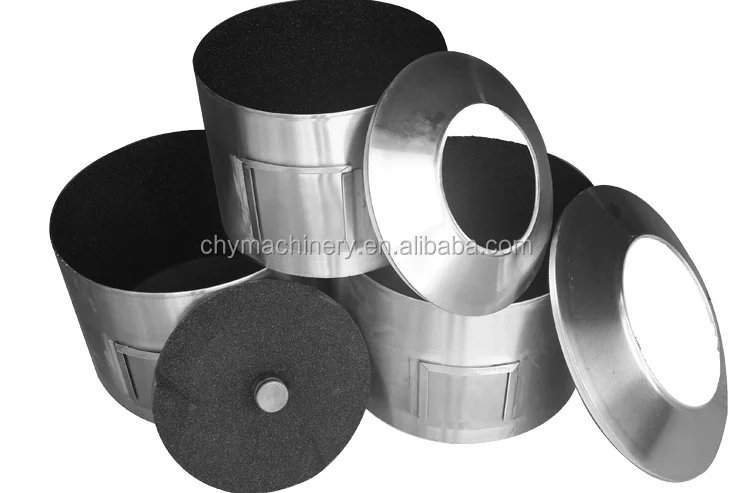

                           Mater of machine barrel

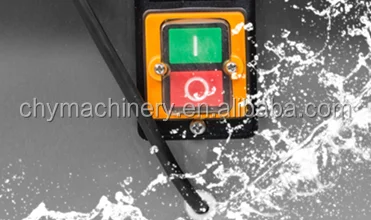

                        Waterproof switch

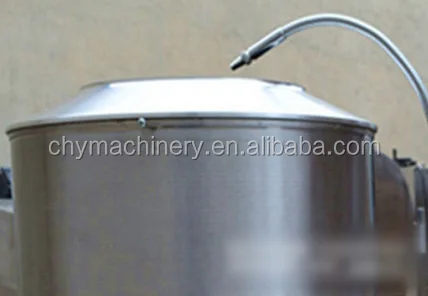

                                 Extra large feeding mouth bow

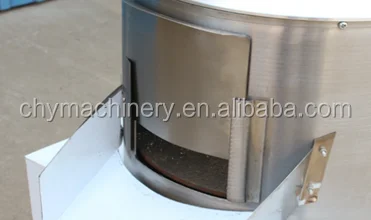

                  New up and down export

Packing & Delivery
Generally,we adopt standard containers, bare main machine, motors and small parts are packed in wooden cases.Or depend on your demands.

1.The mode of transportation we according to the size of the goods or the customer requirements, the samll package will take the DHL , TNT, UPS ect , the large size package machine will take the sea shipping and 20ft, 40ft, 40hp container

2. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.

3.The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try them best to save your container quantity..

FAQ

FAQ:
1)Are you trading company or manufacturer ?
We are factory with 20 years of experience in this industry.
2) How to order?
inquiry >> Confirmation >> Payment >> Delivery
3)When can I get the price?
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
4) How do you make your price?
We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture.You will get competitive price and better quality.
5) Can you guarantee your quality?
Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
6) How long does the whole procedure being worked out?
After you place a order,the production handling time is about 5-7 days. We need 2 days to prepare all the stuff then 5 days for manufacturing.
5) What about the transportation and delivery date?
Normally we use shipment to transprot the goods.It is about 25-40 days.It also denpends on which coutry and port you are. If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.
